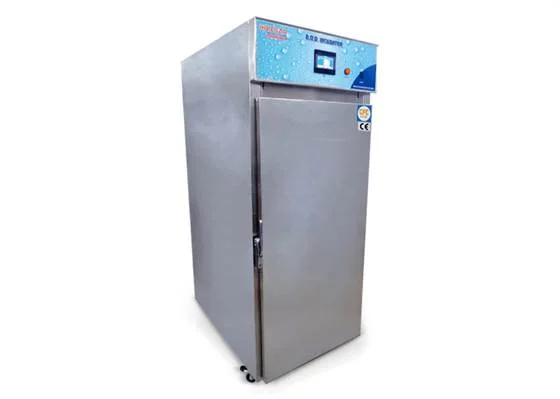

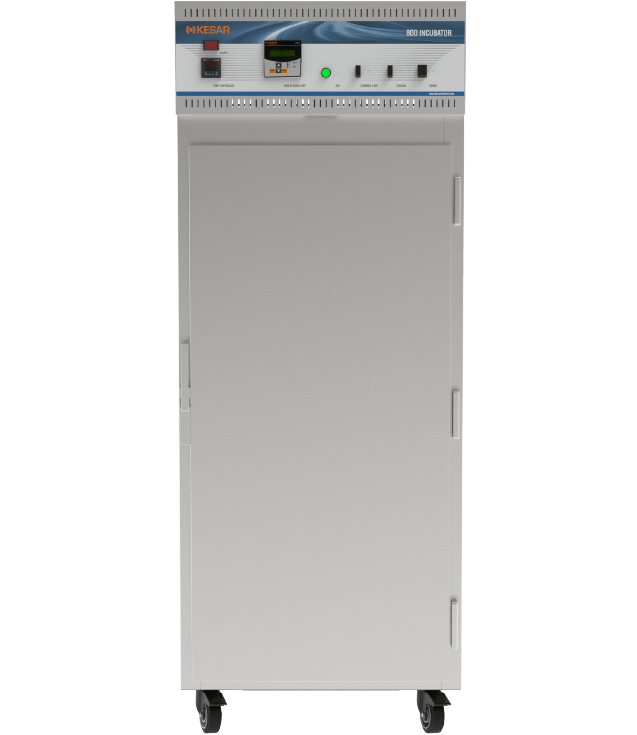

Bacteriological Incubator

Introduction

A bacteriological incubator is an essential piece of laboratory equipment designed to create a controlled environment for the growth and maintenance of bacterial cultures.

At Kesar, as a reliable Bacteriological Incubator manufacturer, we engineered this device to provide precise temperature control, creating optimal conditions for the growth and observation of microorganisms in water, waste water samples, microbial growth and test tissue culture growth. Our Bacteriological Incubators are crafted with advanced technology, ensuring accurate and stable incubation environments for Pharmaceuticals, Laboratories, Chemicals, Life Science, Government Institutes, and Cosmetics etc.

Construction

  • Constructed and fabricated on fully automatic CNC machines.
  • Corrosion-resistant High-Grade stainless steel in Inner and Outer or powder-coated mild steel exterior ensures long-lasting performance.
  • Stainless steel inner chamber with smooth surfaces allows easy cleaning and prevents contamination.
  • High-density PUF (Poly urethane Foam) insulation minimizes heat loss and improves energy efficiency.
  • Adjustable stainless steel shelves provide flexibility for different sample sizes.
  • Silicone gasket-sealed door ensures a tight closure, reducing temperature fluctuations.
  • Transparent inner glass door allows observation without disturbing internal conditions.

Other Details

Specifications

Bacteriological Incubator is a reliable device that ensures incubation of cultures under completely artificial control and completely insulated from harsh external environments. Equipped with advanced automation, the incubator maintains consistent internal conditions without manual intervention, enhancing efficiency.

Control Systems

Displays real-time monitoring of set and actual temperatures through a digital temperature display for enhanced accuracy.

Prevents temperature overshoot with a built-in safety thermostat, ensuring protection against overheating.

Alerts the user with a door open alarm to prevent temperature fluctuations and maintain stable incubation conditions.

Restores previous settings automatically after power restoration, preventing disruptions in incubation cycles.

Provides clear visibility of samples through an illuminated observation glass door without disturbing the internal environment.

Quick Contact

Get Solution

Contact Kesar Control today to learn more about their Products and get a quote.

Contact Now

Features

  • The inner working chamber is water & vapour tight high-grade stainless steel.
  • All seams are arc-welded & passivity for strength & durability.
  • Chambers are provide with effective air circulation system.
  • Double Door: Inner full viewing glass door and outer door insulated with lock and key arrangement. Inner and outer doors are sealed with silicone sponge rubber gasket.
  • Control panel with electrical switch Gear front for easy service accessibility.
  • Equipment mounted on heavy castor wheels for easy movement.
  • Heavy duty solid stainless duly electro polished wire mesh type/perforated trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience.

Optional Features

  • Scanner.
  • GSM Alert System.
  • Security Alarm System.

Technical Specification

Temperature Range 10°C above ambient to 60°C
Accuracy ± 0.2°C
Uniformity ± 2.0°C
Test Suitable For PLC or PID Based

Material of Construction

Models Material Of Construction
Interior Exterior
STD S.S.304 Dull Finish G.I Powder Coated
GMP S.S.304 Dull Finish S.S.304 Dull Finish
CGMP S.S.316 Dull Finish S.S.304 Dull Finish

Sizes

Models Capacity Dimensions (W X D X H) MAX No. of Trays
Internal
Width x Depth x Height (mm)
External
Width x Depth x Height (mm)
KGOI-90 90 LTR 450 X 450 X 450 600 X 910 X 1060 2
KGOI-227 227 LTR 600 X 630 X 600 750 X 1090 X 1210 3
KGOI-325 325 LTR 600 X 630 X 900 750 X 1090 X 1510 5
KGOI-400 400 LTR 600 X 630 X 1060 750 X 1090 X 1670 6
KGOI-500 500 LTR 600 X 630 X 1330 750 X 1090 X 1940 8
KGOI-600 600 LTR 800 X 800 X 950 950 X 1260 X 1560 5
KGOI-800 800 LTR 800 X 800 X 1250 950 X 1260 X 1860 7
KGOI-1000 1000 LTR 800 X 800 X 1570 950 X 1260 X 2180 10
